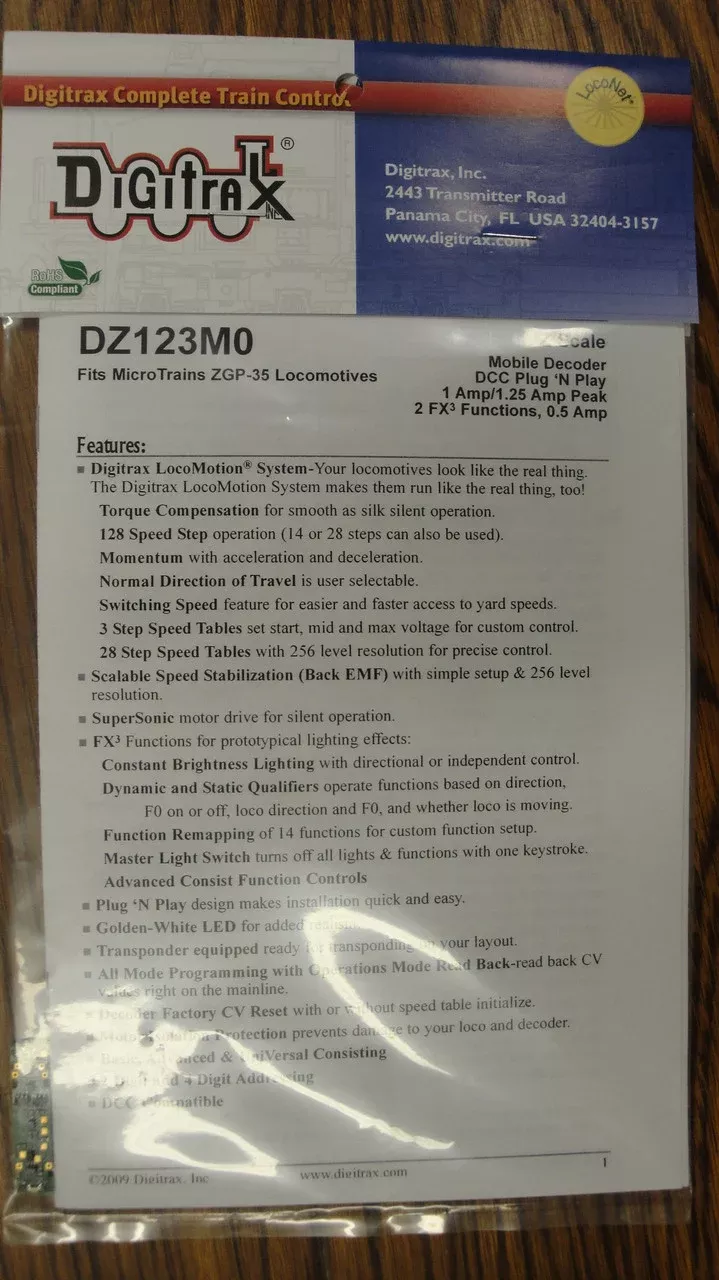

Digitrax DZ123M0 Plug N’ Play Decoder for Micro-Trains GP9, GP35 and SD40-2; Z Scale

Description

Digitrax DZ123M0 Plug N’ Play Decoder for Micro-Trains GP9/35 and SD40-2; Z Scale

Features:

This 2 function FX³ decoder is designed to fit MicroTrains Z scale GP-35, GP-9 locos.

• 128 Speed Step operation (14 or 28 steps can also be used)
• Momentum with acceleration and deceleration.
• Normal Direction of Travel is user selectable.
• 3 Step Speed Tables set start, mid and max voltage for custom control.
• 28 Step Speed Tables with 256 level resolution for precise control
• SuperSonic™ motor drive for silent operation.
• FX³ Function outputs for prototypical lighting effects and on/off control:
• Constant Brightness Lighting with directional or independent control
• FX³ & Standard Function Qualifiers operate functions based on direction,
• F0 on or off, direction and F0, and whether loco is moving.
• Function Remapping for custom function setup.
• Decoder Lock equipped
• All Mode Programming with Operations Mode Read Back reads back CV values right on the mainline.
• Decoder Reset CV with or without speed table reset.
• Motor Isolation Protection prevents damage to your decoder.
• Basic, Advanced & UniVersal Consisting
• 2 Digit and 4 Digit Addressing
• DCC Compatible
• FCC Part 15, Class B RFI compliant
